Radpol Engineering is the proud manufacturer of the Bat-Mag series of Battery powered Lifting Magnets. These amazingly effective Bat-Mag units are powered by onboard batteries and are extremely robust in construction. An optional model Bat-Mag can be powered by the excavator batteries if the alternator output is sufficient.
Specifications:
Magnet Models: 45cm to 60cm (18” to 24”) 12v ,45cm to 100cm (18” to 40”) 24v
Copper wound 45cm to 56cm (18” to 22”) - Aluminium wound 60cm to 100cm (24” to 40”)
Option of either batteries on top or running off excavator batteries (dependant on alternator having enough output to run both excavator and magnet)
H/Duty top plate and casing with 304 gr s/s base plate
Three-point pickup for chains on Auxiliary type and Four- point pickup on self-contained type
Cabin remote and hand remote for Auxiliary type and hand remote for self-contained type
60% duty cycle with a working time of 4-6 hours continuous between recharges on self-contained type
Optional charge cable to charge bat-mag from excavator (alternator must have enough capacity)
Optional fork lift pockets can be fitted to self-contained type
Optional quick hitch on Auxiliary type
3 Year warranty on magnet coil (1 year on other components)
This magnet assembly is 100% Australian made at our factory in Queensland

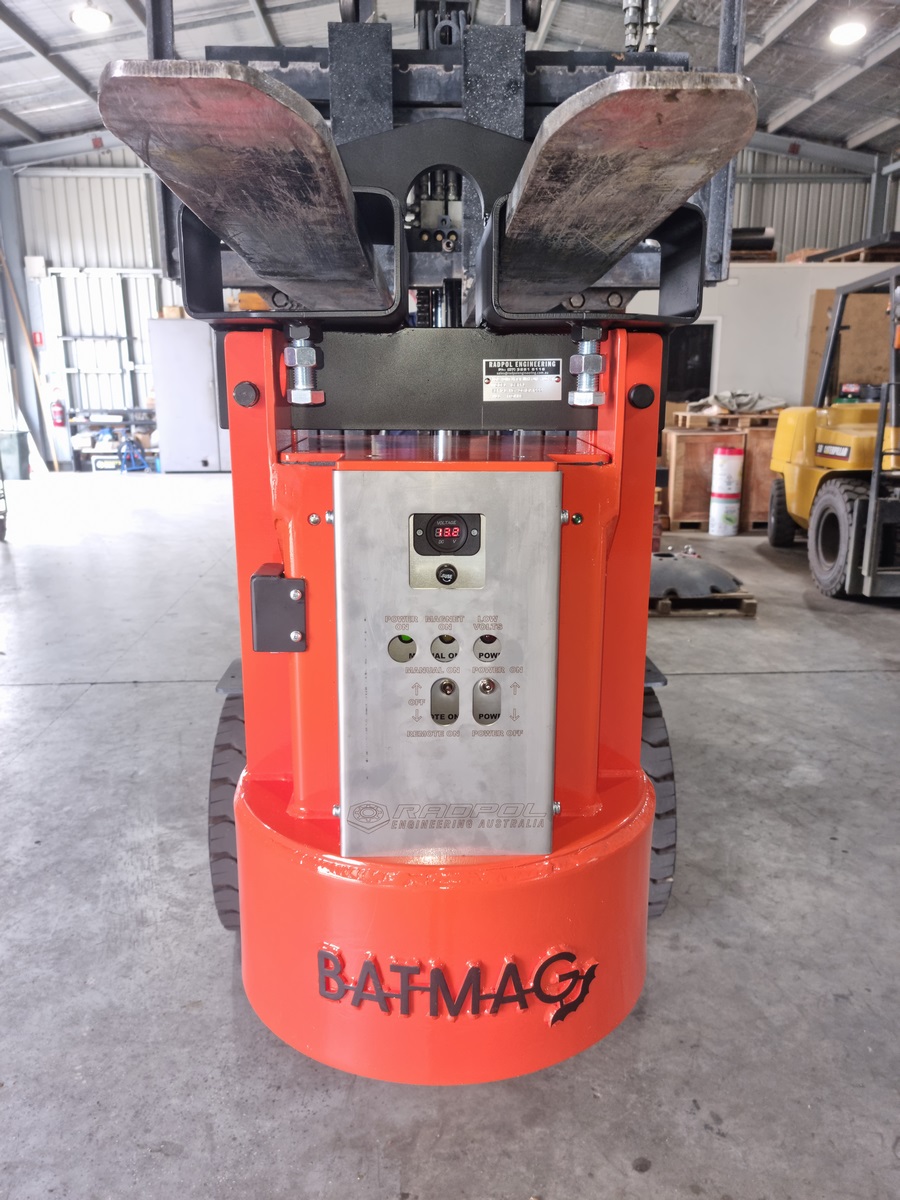

At Radpol we can customise your bat-mag to suit specialised applications as seen in the photo, this particular customer still wanted forklift pockets on his magnet but needed to keep within a certain size , so we designed a special lifting attachment with integrated forklift pockets
